Satellite-based Sargassum Watch System (SaWS)
The Sargassum Watch System (SaWS) is designed to use satellite data and numerical models to detect and track pelagic Saragassum in near-real time.
Pelagic Sargassum seaweed (Image courtesy of Tracy Villareal) is a brown macroalgae floating on the ocean surface. Comprised primarily of two species, S. natans (Image courtesy of Amy Siuda) and S. fluitans (Image courtesy of Amy Siuda), it is abundant in the Intra-Americas Sea (IAS), the Atlantic, and along the coasts of British Isles and mainland Europe. In the ocean it serves as an important habitat for many marine animals as it provides food, shade, and shelter (from predators) to fish, shrimp, crabs, and turtles. Sargassum may serve as fertilizers for sand dunes and thus protects shoreline stability. It is also a marine resource for other uses such as biomass for food, fuel, and as a possible source of pharmaceutical materials.
However, excessive amounts of Sargassum on beaches in populated areas can cause a lot of problems and they must be physically removed. Sargassum decomposition on beaches smells bad, attracts insects, and causes many environmental problems (e.g., smothering turtle nesting sites, sea turtle mortality, fish kills) and economic problems (e.g., diminished tourism). The beaches along the Texas coast have experienced Sargassum inundation events annually, and since 2001 beaching events have also occurred on many Caribbean shores in nearly every spring and summer. Sargassum beaching events have also been reported in western Africa and northern Brazil. Monitoring Sargassum distribution and abundance in the ocean in a timely fashion is of great importance for studying ocean ecology, helping fishery management, and forecasting Sargassum beaching events. The SaWS is meant to provide such a function through producing and sharing customized satellite imagery in near real-time in a user-friendly way.
You may be interested in these links:
The table below shows the four satellite sensors that are currently used in SaWS, with the first three sharing similar characteristics.
The raw satellite data are provided by the U.S. NASA and USGS. These data are downloaded and processed through a Virtual Antenna System using both standard and customized algorithms. Of particular importance are the two customized data products, namely the floating algae index (FAI) to detect floating algae and other materials on the ocean surface, and the color index (CI) to trace ocean circulation features. Floating algae often appears in images as slicks over the relatively homogeneous background in the FAI imagery, while ocean circulation patterns may be inferred from the various eddy and plume features in CI imagery. Two examples are given below.

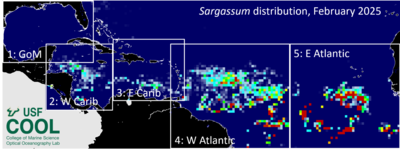

Currently, SaWS covers the entire Intra-Americas Sea, western Tropic Atlantic, and Bermuda. To facilitate visualization and navigation, the imagery products are divided into different geographic regions, for example Central Atlantic, Eastern Caribbean, Western Gulf of Mexico, Bermuda, etc. The "SaWS Clickable Map" at top of this paragraph shows the current coverage, where any region can be clicked to open a separate page unique to that region. A user may then select a specific date on the calendar, or use the “animate” function to browse through the image sequence quickly to determine the date of interest. A screenshot of a typical web interface is presented below.
Under each images icon in the VAS (previous tab) there is a small GE button in the lower right corner. When this is clicked, a KML file is generated for that image. In addition, surface currents from the Hybrid Coordinate Ocean Model (HYCOM — from the National Ocean Partnership Program (NOPP)) are obtained, updated nightly, and made available via the VAS as a layer within Google Earth. Thus, both the image and surface currents can be displayed in Google Earth with a simple mouse click (see example below), thereby facilitating visualization and navigation. Within Google Earth, once a Sargassum raft is identified with latitude and longitude, current speed and direction (available through a mouse click over the current vector) near the raft can be used to predict the movement of the raft and a possible beaching time, in essence, forming an early warning system.
Sargassum has impacted the Caribbean in so many ways. Here we show a few photographs that reveal the serious nature of the problem.
Dierssen, H. M., A. Chlus, and B. Russell (2015). Hyperspectral discrimination of floating mats of seagrass wrack and the macroalgae Sargassum in coastal waters of Greater Florida Bay using airborne remote sensing. Remote Sens. Environ., 167:247-258.
Franks, J., D. R. Johnson, D. S. Ko, G. Sanchez-Rubio, J.R. Hendon, and M. Lay (2011), Unprecedented Influx of pelagic Sargassum along Caribbean island coastlines during summer 2011, Proc. Gulf Caribb. Fish. Inst., 64:6-8.
Hu, C., L. Feng, R.F. Hardy, and E. J. Hochberg (2015), Spectral and spatial requirements of remote measurements of pelagic Sargassum macroalgae, Remote Sens. Environ., 167, 229-246. doi: doi:10.1016/j.rse.2015.05.022
Lapointe, B. E., L. E. West, T. T. Sutton, and C. Hu (2014), Ryther revisited: nutrient excretions by fishes enhance productivity of pelagic Sargassum in the western North Atlantic Ocean, J. Exp. Mar. Bio. Ecol. 458:46-56.
Milledge, J. J., B. V. Nielsen, and D. Bailey (2015). High-value products from macroalgae: the potential uses of the invasive brown seaweed, Sargassum muticum. Reviews in Environmental Science and Bio/Technology. 15:67-88.
Parr, A.E. (1939), Quantitative observations on the pelagic Sargassum vegetation of the western North Atlantic, Bull. Bingham Oceanog. Coll., Peabody Museum of Natural History, Yale University, 6(7): 1-94. Oceanography 28(3):8–10
Wang, M., and C. Hu (2016). Mapping and quantifying Sargassum distribution and coverage in the Central West Atlantic using MODIS observations. Remote Sens. Environ., 183:356-367. http://dx.doi.org/10.1016/j.rse.2016.04.019
The information bulletin is meant to provide a general outlook of current bloom condition and future bloom probability for the Caribbean Sea and Gulf of Mexico. By no means should it be used for commercial purpose, or used for predicting bloom conditions for a specific location or beach. The authors of this bulletin, as well as USF and NASA, take no responsibility for improper use or interpretation of the bulletin. Any use of the image, data, or graph from this bulletin page in reports or publications should obtain permission from the USF OOL group.
This page provides links to Sargassum forecast or outlook bulletins (see bottom of this page), which are updated routinely. The bulletins started in early February 2018, and they are meant to give an outlook of Sargassum bloom probability in certain regions in the upcoming months, based on bloom conditions in previous months, and previous years.
Sargassum blooms in the Caribbean Sea
Since 2011, large amounts of Sargassum seaweed appeared in the Caribbean Sea every summer except 2013, creating many environmental, ecological and economic problems in many regions. The seaweed originated from the tropical Atlantic, and is believed to be a result of climate variability and other natural and unnatural processes. Based on satellite observations and statistics of historical events, in early February 2018 the Optical Oceanography Lab developed the first 1-page Sargassum outlook bulletin for the Caribbean Sea. Since then, the bulletins have been generated and distributed to subscribers by the last day of the month. These monthly bulletins are also made available at the bottom of this page. Further readings are also available under the Reference page.
In May 2022, the Sargassum in the Caribbean Sea continued to increase from April 2022. Further details can be found in the May 2022 bulletin below.
